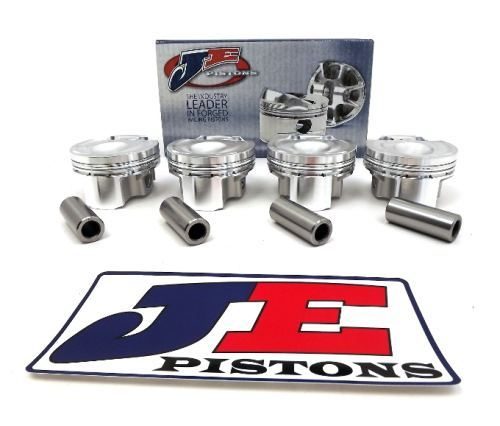

Mustang Ecoboost 2.3 JE Forged Pistons - Mustang 2.3T Ecoboost

Absolute Performance Piston Set

Delivery Cost?

RRP: £613.00 (inc. VAT)

Our Price: £613.00 (inc. VAT)

Fully Fitted: £2,593.00 (inc. VAT)

Order quantity  (13 Sold)

Tweet

Mustang JE Forged Pistons - Wiseco Performance Pistons

For decades, JE Pistons has manufactured custom postons for thousands of applications.

Ultra Crown Dome Ultra Crown Inverted Dome:

The Ultra Crown machining process allows incredibly precise dome to cylinder head tolerances. By mapping the exact shape of a piston or cylinder head, optimum compression and quench characteristics can be achieved.

3D Under Crown Milling:

The Under Crown machining process allows for uniform deck thickness, therefore creating a lighter and more durable piston.

Vertical Gas Ports:

Vertical holes in the deck of the piston, allows combustion pressure to directly enter behind the top ring on the power stroke, thus pressurizing the area behind the top ring for greater ring to cylinder wall seal. During the rest of the cycle, the ring has normal tension for reduced fricition. (most commonly used for drag race applications)

Lateral Gas Ports:

This process mills slots into the top of the top ring groove and provides a pathway for combustion pressure to get behind the top ring. This process helps to increase ring seal and is most commin in circle track applications.

Ultra Groove:

Ultra Groove is a special ring groove machining process that provides near perfect groove flatness and surface finish. Tolerances are held to millionths of an inch.

Spin Boss & Window Milling:

In certain applications window milling will remove a significant amount of weight from the skirt of the piston while maintaining its strength and integrity. Spin boss refers to machining on the bottom of the pin boss, which removes weight where it is not needed for strength.

Plunge Boss & Chamfer Pin Boss:

Machining process that removes additional material for added weight savings.

Contact Reduction Grooves:

The purpose of machining these grooves is to reduce the amount of contact area against the cylinder wall when the piston "rocks over". Contact reduction also serves to disrupt the flame travel into the crevice area thus helping to reduce detonation.

Accumulator Grooves:

An accumulator groove is machined into the land between the top and second ring. It provides additional volume where residual combustion gases that have "blown by" the top ring can collect. This additional volume helps to reduce pressure between the top & second rung, thus aiding in top ring seal and minimizing ring flutter.

Double Pin Oilers:

Double Pin Oilers deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.

Pin Fitting:

The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.

Oil Squirt Notch:

Notching can be done on pistons for motors with oil squirters, or to avoid contact between pistons and/or pistons and crankshaft.

Bottom Oilers:

This process machines one or two holes into the bottom of the pin boss to assist in splash pin lubrication.

Tulip Valve Pockets:

Most commonly used on Hemi and motorcycle engines, this process leaves a raised area on plunged valve pockets to achieve maximum compression.

Motor Type = 2.3L Ecoboost

Net Piston Displacement = -6.4

Weight = 355g Each

Bore = 3.445 / 87.50mm

Dome Height = 0.60 / 1.52mm

Comp. Dist = 1.299 / 32.99mm

Int = 0.088 / 2.24mm 20 Degree

Exh = 0.177 / 4.50mm 20 Degree

Valve Pocket Measured From Deck

Ring Set = JG1004-3445

Bore = 3.445

Nitrite = 1.0 x 1.2 x 2.8

Mustang JE Forged Pistons

The Pumaspeed Workshop team are ready to fit the Mustang Ecoboost 2.3 JE Forged Pistons in our Head Office located here.

We estimate the labour time to be approximately 20.00 hour(s) costing £1,980.00 inc VAT.

Therefore making parts and labour a total cost £2,593.00 (inc. VAT).

Please don�t hesitate to contact us on the phone number above or click here to email.

Note: The fitting cost quoted is an estimate based on our Ford tuning experience. Please be aware that on rare occasions problems can occur that are out of our control; such as seized or snapped bolts due to age or wear. We work swiftly but in the event of an issue we may have to levy the fitting charge based on the time taken to rectify any unforeseen circumstances.

Pumaspeed Performance Distribution

Pumaspeed have a specialist distribution team that can dispatch the Mustang Ecoboost 2.3 JE Forged Pistons to any destination worldwide.

Please select the delivery country from the drop down list below to see the express delivery charge and set your shopping cart to the correct VAT rate.

UK: Mainland UK: Highlands and Islands UK: Isle of Man UK: Isle of Wight Channel Islands Northern Ireland Afghanistan Albania Algeria American Samoa Andorra Angola Anguilla Antarctica Antigua and Barbuda Argentina Armenia Aruba Australia Austria Azerbaijan Bahamas Bahrain Bangladesh Barbados Belarus Belgium Belize Benin Bermuda Bhutan Bolivia Bosnia and Herzegowina Botswana Bouvet Island Brazil British Indian Ocean Territory Brunei Darussalam Bulgaria Burkina Faso Burundi Cambodia Cameroon Canada Cape Verde Cayman Islands Central African Republic Chad Chile China Christmas Island Cocos (Keeling) Islands Colombia Comoros Congo Cook Islands Costa Rica Cote D'Ivoire Croatia Cuba Cyprus, North Cyprus, South Czech Republic Denmark Djibouti Dominica Dominican Republic East Timor Ecuador Egypt Eire El Salvador Equatorial Guinea Eritrea Estonia Ethiopia Falkland Islands (Malvinas) Faroe Islands Fiji Finland France French Guiana French Polynesia French Southern Territories Gabon Gambia Georgia Germany Ghana Gibraltar Greece Greenland Grenada Guadeloupe Guam Guatemala Guinea Guinea-bissau Guyana Haiti Heard and Mc Donald Islands Honduras Hong Kong Hungary Iceland India Indonesia Iran (Islamic Republic of) Iraq Israel Italy Jamaica Japan Jordan Kazakhstan Kenya Kiribati Korea, Democratic People's Republic of Korea, Republic of Kuwait Kyrgyzstan Lao People's Democratic Republic Latvia Lebanon Lesotho Liberia Libyan Arab Jamahiriya Liechtenstein Lithuania Luxembourg Macau Macedonia Madagascar Malawi Malaysia Maldives Mali Malta Marshall Islands Martinique Mauritania Mauritius Mayotte Mexico Micronesia, Federated States of Moldova, Republic of Monaco Mongolia Montserrat Morocco Mozambique Myanmar Namibia Nauru Nepal Netherlands Netherlands Antilles New Caledonia New Zealand Nicaragua Niger Nigeria Niue Norfolk Island Northern Mariana Islands Norway Oman Pakistan Palau Panama Papua New Guinea Paraguay Peru Philippines Pitcairn Poland Portugal Puerto Rico Qatar Reunion Romania Russian Federation Rwanda Saint Kitts and Nevis Saint Lucia Saint Vincent and the Grenadines Samoa San Marino Sao Tome and Principe Saudi Arabia Senegal Seychelles Sierra Leone Singapore Slovakia (Slovak Republic) Slovenia Solomon Islands Somalia South Africa South Georgia and South Sandwich Spain Spain: Canaries Sri Lanka St. Helena Sudan Suriname Svalbard and Jan Mayen Islands Swaziland Sweden Switzerland Syrian Arab Republic Taiwan Tajikistan Tanzania, United Republic of Thailand Togo Tokelau Tonga Trinidad and Tobago Tunisia Turkey Turkmenistan Turks and Caicos Islands Tuvalu Uganda Ukraine United Arab Emirates United States United States Minor Outlying Islands Uruguay Uzbekistan Vanuatu Vatican City State (Holy See) Venezuela Viet Nam Virgin Islands (British) Virgin Islands (U.S.) Wallis and Futuna Islands Western Sahara Zaire Zambia Zimbabwe

Are you a trade customer?

Pumaspeed have a specialist trade distribution team that service many of the Motor trade specialists throughout the UK, the EU and the Rest of the World.

From a simple email tune file to a huge shipment of Milltek Sport Exhaust Systems. We have an expanding portfolio of new brands and products combined with the experience and ability to provide what you need.

To register your interest as a company click here.

No Reviews Yet
Click to write the first review

To post a review to our Facebook page, please click the Facebook Log In button above. Next type your Email or Phone and associated Username into the popup login panel and click the Log In button to sign into Facebook. Finally type your review in the box provided below and click the Post Review button.

Review:

The Mustang Ecoboost 2.3 JE Forged Pistons product has been listed by Pumaspeed as fitting the following vehicles:

Mustang 2.3T Ecoboost
