*MK8OC* MAXD-OUT Workshop Fitted - Fiesta ST 1.5T 2018 Stage 1R -

MAXDOUT - TRANSFORMS THE NEW 1.5T ENGINE

Delivery Cost?

RRP: £349.99 (inc. VAT)

Our Price: £299.00 (inc. VAT)

Fully Fitted: £299.00 (inc. VAT)

Order quantity

Tuning box option
No additional tuning boxAdd the Maxd-Out tuning box (+� 143.99) (inc. VAT)

Tweet

Stage 1R Progressive Power and Torque 240-250 bhp - MAXD-OUT Software

• Stage 1 225-230bhp, Stage 1R 240-250bhp
• Lower and safer boost levels over competitor mapping
• Installed at Pumaspeed HQ

This brand new 2018 Fiesta Stage 1R version of MAXDOUT contains a super safe engine calibration that runs a tiny lift in boost over the stock mapping but lifts torque and peak performance significantly by 40-50bhp and 80-100nm at peak levels to make the car feel effortlessly quick. The torque delivery below 2300rpm is very similar to stock meaning power isn't wasted away in wheelspin.

Not only has this tune proven itself to have the best performance increases available on the Fiesta ST Mk8, it also features unique features including on the road switchable mapping. Normal driving mode and Sport/Track mode have some very differing features that enhance the driving experience in a way only MAXDOUT know how to do.

In normal mode the car is very much OEM+ with all eco features enabled such as cylinder deactivation and stop start whilst maintaining the performance everybody expects from the MAXDOUT mapping calibrations. But hit the Sport mode button and the car really comes alive with amplified crackles on overrun, sharper throttle response, more aggressive hardcut limiter, refined launch control and the full fat performance that MAXDOUT has to offer!

Fantastic results from the new MAXDOUT mapping on the new ST Mk8.

Pumaspeed have 3 Mk8 Fiesta demo cars, 1.0T, 1.5T and a very bespoke race inspired 1.6T G25-550 450bhp powered track car.
The pride of the Mk8 fleet is the new 1.5T and very eager to lift power saw us read the stock MG1 version ECU with the very popular MAXDOUT software back in June or July 2018, so we were very quickly able to get to work of writing some testing maps for the car. The only issue was that no-one in the world had the write protocols so no matter how many files we or anyone else wrote they just could not be written to the ECU.

The MG1 version ECU was finally write enabled on the August 22nd 2018 so we have been testing and logging maps on the various firmware versions since then with some brilliant results as the main YouTube video of the new Stage 1R map below shows.

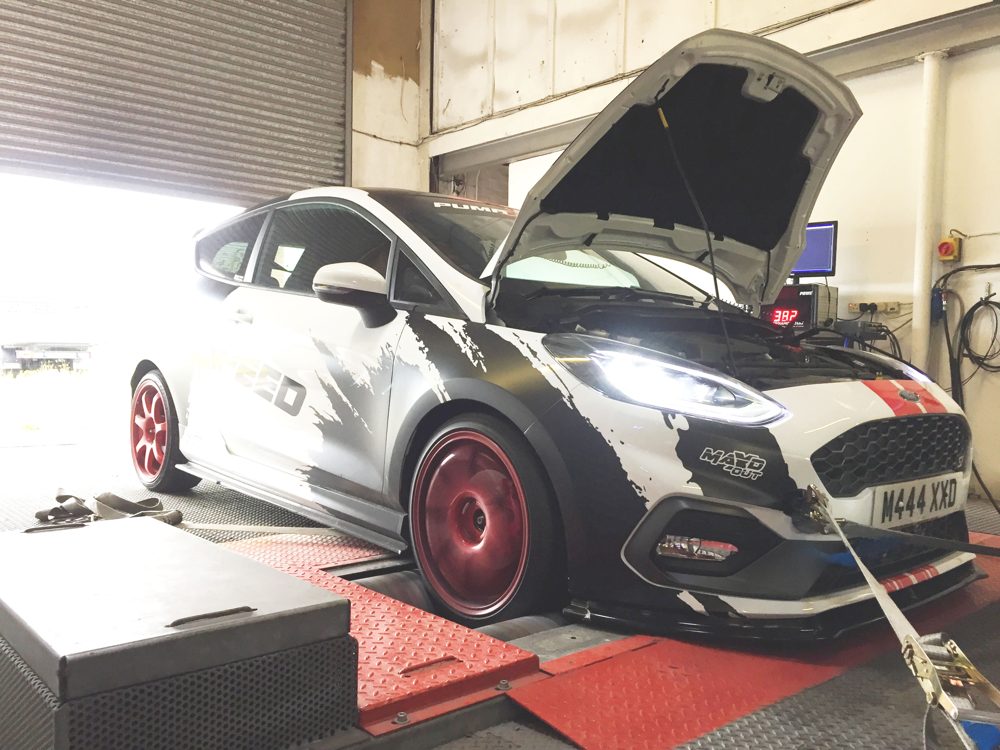

A stock power run with a high flow panel filter and Scorpion catback showed a healthy 205-208bhp spread with an average around 206 of the 6 back to back dyno runs performed.



In mid September the very popular MAXDOUT system was write enabled, so the Pumaspeed dealer network can now deliver fully tested maps which have had 10,000+ miles worth of dyno, track and road miles.


STAGE 1



Run after run the car performs consistently with fantastic power and torque figures on the brand new Stage 1R calibration



The Stage 1R MAXD box contains the following tuning files:

Stage 1 - 225-230bhp and 330-340nm

Stage 1R - 240-250bhp and 370-390nm

Is the MAXDOUT mapping warranty safe?
- Yes we believe so, the MAXDOUT programmer has a unique feature, it allows you to read and store the original file on any Windows PC! This saved file can, at any time, be re-installed to the car and the vehicle taken into Ford for any recall works.

- The programmer can be used to upload and download an unlimited number of times but after recall works please contact Pumaspeed again as Ford may have uploaded a new stock firmware version that may need one of our updated files


What happens to my stock mapping?
- This will be read and will be saved on the Laptop for re-use at any time and as many times as you wish.


What if my car is already mapped?
- Your ECU will be read by the software and this will be treated as the stock mapping for your car. We do have stock maps available and these can be included if required.


Is the software easy DIY install on and off the car?
- Yes the custom software is very simple to use and runs on any Windows laptop.



Can I upgrade the maps to a higher level?
- Yes the benefit of the system is that MAXDOUT can easily send you upgraded files from the above list as you upgrade the hardware to suit.

Can MAXDOUT write a custom file to suit my list of mods?
- Yes the in house calibration specialists at MAXDOUT can tailor a mapping to suit you and your driving style. Whilst MAXDOUT research and development does run through most case scenarios there will always be the requirement for that one off special.

Can I use the device on more than one vehicle?
- No the MAXDOUT device locks itself you your vehicles VIN number and cannot be used on another vehicle.

Can I use Different Fuels?
-  MAXDOUT maps are available for 95 RON 99RON and 102RON high quality fuel. We will make them freely available but warn that running the wrong fuel to mapping combination can be dangerous.

Does the mapping affect the immobilizer ?
- MAXDOUT maps will not affect the vehicle immobilizer in any way.

Can I download a stock map?
- If your car has already been mapped elsewhere and you want to return it to standard, we can provide a standard tune.

Do we think its the best?
- The simple answer is YES, Pumaspeed and internet forum owner testing has shown all the MAXDOUT mappings to be higher powered than every other branded mapping, including some very well known names.

Stage 1R Progressive Power and Torque 240-250 bhp
