AIRTEC Motorsport Uprated Auxiliary Radiator (DSG & Engine) for VW Golf Mk7 R, Audi S3, Seat Leon, Audi TT - S3 8V

Name: AIRTEC Motorsport Uprated Auxiliary Radiator (DSG & Engine) for VW Golf Mk7 R, Audi S3, Seat Leon, Audi TT
Brand: Airtec Motorsport
SKU: ATINTVAG42
Price: 297.62 GBP

AIRTEC Motorsport Uprated Auxiliary Radiator (DSG & Engine) for VW Golf Mk7 R, Audi S3, Seat Leon, A

Delivery Cost?

RRP: £297.62 (inc. VAT)

Our Price: £297.62 (inc. VAT)

Fully Fitted: £512.42 (inc. VAT)

Order quantity

Choose your version

AIRTEC Motorsport Uprated Auxiliary Radiator (DSG & Engine) for VW Golf Mk7 R, Audi S3, Seat Leon, Audi TT

AIRTEC Motorsport Uprated Auxiliary Radiator (DSG & Engine) for VW Golf Mk7 R, Audi S3, Seat Leon, Audi TT - view 2

AIRTEC Motorsport Uprated Auxiliary Radiator (DSG & Engine) for VW Golf Mk7 R, Audi S3, Seat Leon, Audi TT - Airtec Motorsport

Audi S3 8V
Audi TT 8S (2.0 TSi)
Seat Leon Cupra 5F
VW Mk7 Golf R
Available for both left- and right-hand sides
67% increase in capacity compared to original
Quadruple-pass design for improved cooling
Direct fit with no cutting or trimming
AIRTEC part number ATINTVAG42

AIRTEC Motorsport Uprated Auxiliary Radiator (DSG & Engine) for VW Golf Mk7 R, Audi S3, Seat Leon, Audi TT

Technical Data

As part of our expanding Audi/VW and Seat product ranges, AIRTEC Motorsport are proud to launch our uprated auxiliary radiators for DSG or engine coolant suitable for track or fast road use.

The Issue
During extended periods of track or fast road use, particularly for cars with increased power, both the DSG transmission's oil and the engine's coolant can reach temperatures that are too high to offer sufficient cooling protection properties. As a result, there is risk of damaging the transmission and/or engine, so the car's ECU will automatically limit the engine's torque output and extend the gearbox's shift times, which makes it feel notably less responsive and eager. It can even cause permanent damage, if it persistently overheats.

The Solution

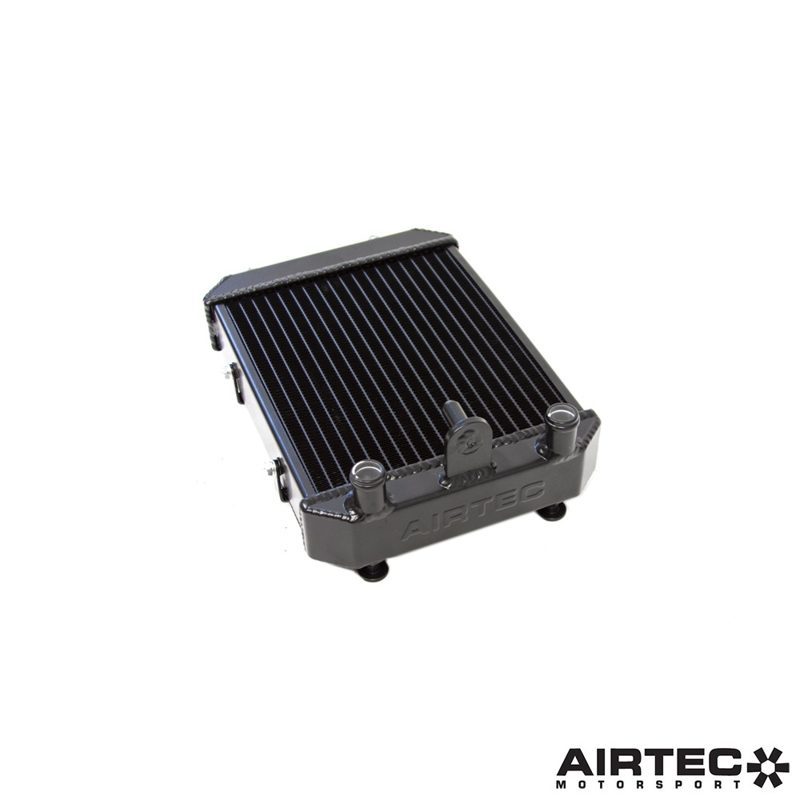

AIRTEC Motorsport's solution to improving the DSG's and engine's running temperatures is to increase the size, capacity and ability of the original auxiliary radiators mounted behind either side of the bumper. By utilising the available space, we developed a replacement radiator that's wider and thicker. This means capacity is increased by a huge 67% over standard, whilst frontal area is also increased to help sufficiently cool the extra capacity.

The core also features a quadruple pass design, which forces coolant entering it to pass up and down the core four times before it exits, increasing the time the coolant passes through the radiator to further decrease temperatures. The result is a radiator that is able to keep cooler for longer, therefore helping the car run at its optimum for longer.

Despite the increases, the radiators fit neatly behind the bumper and requires only minor trimming of the original air duct to fit, otherwise using the OEM mounts and the original coolant connectors. To protect the larger radiator core from road debris, there is also a (removable) stone guard.

Finished in a high-quality powder-coated black finish, the comprehensive fitting kit includes all fixtures and a detailed instruction fitting guide.

Fits:

Audi S3 8V
Audi TT 8S (2.0 TSi)
Seat Leon Cupra 5F
VW Mk7 Golf R

Right-hand side cooler - DSG

Left-hand side cooler - engine coolant

Please note: Not all DSG models will have a DSG radiator - please physically check your car does before ordering.

Dimensions:
OEM
Width: 188mm
Height: 216mm
Depth: 26.5mm
Capacity: 1.08 litres

AIRTEC
Width: 200mm
Height: 216mm
Depth: 42mm
Capacity: 1.8 litres

Features:

Available for both left- and right-hand sides
67% increase in capacity compared to original
Quadruple-pass design for improved cooling
Direct fit with no cutting or trimming
Removeable stone guard to protect the core
Comprehensive fitting guide

AIRTEC Part No: ATINTVAG42

Fits: S3 8V, TTRS Mk3, TTS Mk3, Golf R Mk7, Golf GTI Mk7

Choose your version:

No Airtec Logo, Single X1 Radiator
Blue Airtec Logo, Single X1 Radiator
Red Airtec Logo, Single X1 Radiator
White Airtec Logo, Single X1 Radiator
Yellow Airtec Logo, Single X1 Radiator
Orange Airtec Logo, Single X1 Radiator
Green Airtec Logo, Single X1 Radiator
Silver Airtec Logo, Single X1 Radiator
Pink Airtec Logo, Single X1 Radiator
Purple Airtec Logo, Single X1 Radiator
No Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)
Blue Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)
Red Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)
White Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)
Yellow Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)
Orange Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)
Green Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)
Silver Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)
Pink Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)
Purple Airtec Logo, Pair X2 Radiators (+GBP 297.62 inc VAT)

Supplied and fitted by Pumaspeed. Call us for fitting prices and advice.

AIRTEC Motorsport Uprated Auxiliary Radiator (DSG & Engine) for VW Golf Mk7 R, Audi S3, Seat Leon, Audi TT

The Pumaspeed Workshop team are ready to fit the AIRTEC Motorsport Uprated Auxiliary Radiator (DSG & Engine) for VW Golf Mk7 R, Audi S3, Seat Leon, Audi TT in our Head Office located here.

We estimate the labour time to be approximately 2.00 hour(s) costing £214.80 inc VAT.

Therefore making parts and labour a total cost £512.42 (inc. VAT).

Please don�t hesitate to contact us on the phone number above or click here to email.

Note: The fitting cost quoted is an estimate based on our Ford tuning experience. Please be aware that on rare occasions problems can occur that are out of our control; such as seized or snapped bolts due to age or wear. We work swiftly but in the event of an issue we may have to levy the fitting charge based on the time taken to rectify any unforeseen circumstances.
