AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD) - RS3 8V

Name: AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD)
Brand: Airtec Motorsport
SKU: 201393
Price: 385.82 GBP

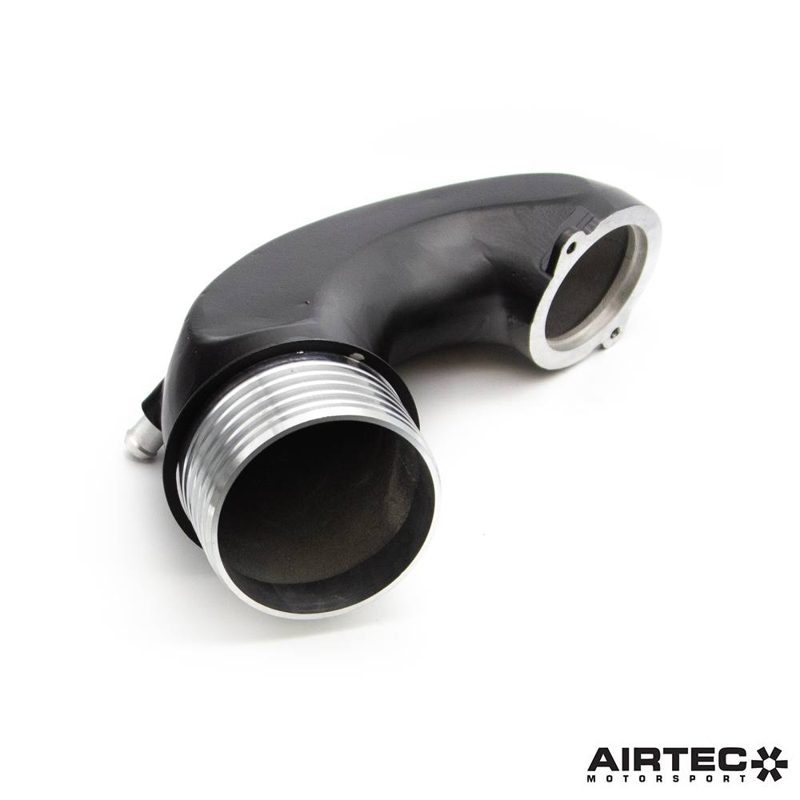

AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD)

Delivery Cost?

RRP: £385.82 (inc. VAT)

Our Price: £385.82 (inc. VAT)

Fully Fitted: £600.62 (inc. VAT)

Order quantity

AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD)

AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD) - view 3

AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD) - Airtec Motorsport

Huge 62.5% increase in internal capacity
30% larger internally on average compared to original
Smooth angle design to improve flow
Improves throttle response and reduces restriction
High-quality cast aluminium construction
Works with both standard turbos and various hybrid turbos
Available for both Left-Hand and Right-Hand Drive
Powder coat black finish
AIRTEC part number 201393

AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD)

Technical Data

As part of our expanding Audi product range, AIRTEC Motorsport are proud to launch our cast turbo elbow for the RS3 8V kit for fast road or track use.

Our solution
The bottle neck of the 2.5 TFSI engine is the turbo elbow, which reduces down in diameter massively as it passes down behind the engine to the turbo. Our approach to improving this focused on making the very most of the available space and as a result, our in-house design engineer team were able to create an elbow design that is unrivalled on the market for its increase in diameter and improvement in flow.

Featuring a 4/102mm inlet, the elbow gently tapers down with no aggressive step to ensure optimum flow from start to finish with a substantially increased volume over standard.

As a result, the AIRTEC Motorsport enlarged elbow measures a huge 8,171mm2 at its widest cross-sectional measurement, compared to the original pipe's 5,026mm2 at its widest point, therefore offering a huge increase of 62.5%. On average, it's 30% larger internally compared to the standard elbow, offering a huge increase in capacity. This improves throttle response and reduces restriction, which is key for those chasing increased power from their cars.

A direct replacement part, the elbow is made from high-quality cast aluminium and has been designed to work with other our own AIRTEC Motorsport induction it (similar sized induction kits should also fit). To fit the right-hand drive models, an indentation has been introduced to allow clearance for the brake master cylinder.

The elbow comes with detailed fitting instructions and is designed to work with both standard turbos and various types of hybrid turbos, thanks to a range of machined flanges (62.8mm and 65.7mm) that come with the kit. The comprehensive package also includes a Pro Hoses replacement silicone breather hose and vacuum line, a new O-ring and all fixtures and fittings required for installation.

Finished in powder coated black with a AIRTEC Motorsport cast logo, these uprated elbows offer a great benefit for modified RS3 8V owners.

Please note: This elbow has been designed to fit with the 102mm AIRTEC Motorsport top pipe/induction kit. Any aftermarket top pipes/induction kits measuring less than 102mm will not fit with this elbow.

Will also fit Audi TTRS (8S) and RS3 (8V and 8Y) 2017 onwards.

Features:

Huge 62.5% increase in internal capacity
30% larger internally on average compared to original
Smooth angle design to improve flow
Improves throttle response and reduces restriction
High-quality cast aluminium construction
Works with both standard turbos and various hybrid turbos
Available for both Left-Hand and Right-Hand Drive
Powder coat black finish
Direct replacement part
Comprehensive fitting guide included

AIRTEC Part No: ATMSVAG13

Fits: RS3 8V, RS3 8Y, TTRS Mk3

Supplied and fitted by Pumaspeed. Call us for fitting prices and advice.

AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD)

The Pumaspeed Workshop team are ready to fit the AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD) in our Head Office located here.

We estimate the labour time to be approximately 2.00 hour(s) costing £214.80 inc VAT.

Therefore making parts and labour a total cost £600.62 (inc. VAT).

Please don�t hesitate to contact us on the phone number above or click here to email.

Note: The fitting cost quoted is an estimate based on our Ford tuning experience. Please be aware that on rare occasions problems can occur that are out of our control; such as seized or snapped bolts due to age or wear. We work swiftly but in the event of an issue we may have to levy the fitting charge based on the time taken to rectify any unforeseen circumstances.

Pumaspeed Performance Distribution

Pumaspeed have a specialist distribution team that can dispatch the AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD) to any destination worldwide.

Please select the delivery country from the drop down list below to see the express delivery charge and set your shopping cart to the correct VAT rate.

Are you a trade customer?

Pumaspeed have a specialist trade distribution team that service many of the Motor trade specialists throughout the UK, the EU and the Rest of the World.

From a simple email tune file to a huge shipment of Milltek Sport Exhaust Systems. We have an expanding portfolio of new brands and products combined with the experience and ability to provide what you need.

To register your interest as a company click here.

No Reviews Yet
Click to write the first review

The AIRTEC Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (LHD) product has been listed by Pumaspeed as fitting the following vehicles:

RS3 8V

RS3 8Y

TTRS Mk3
