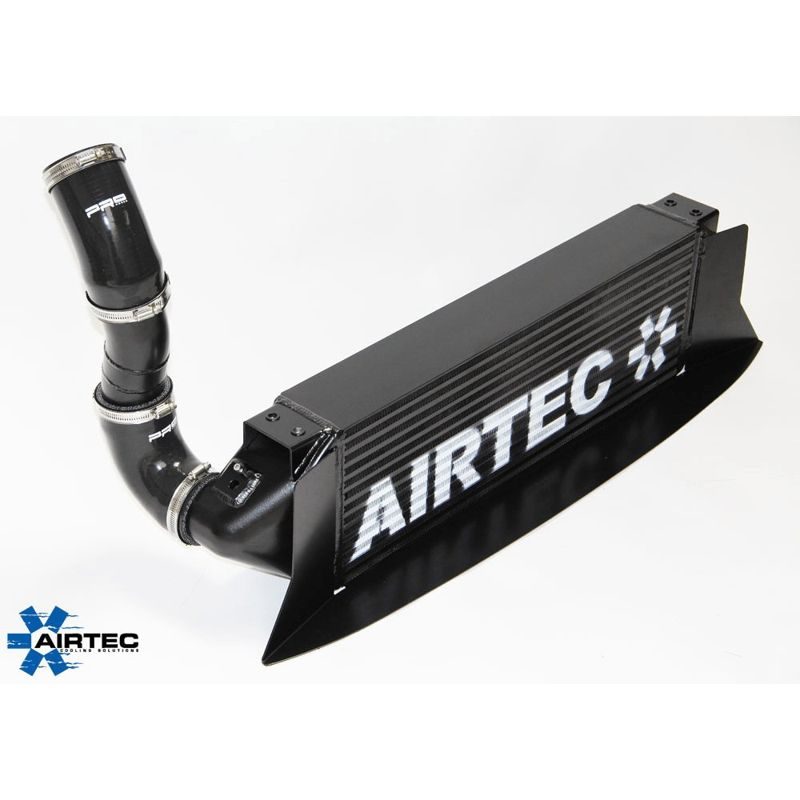

AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2 - Focus RS Mk2 2009

Name: AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2
Brand: Airtec Motorsport
SKU: ATINTFO23
Price: 887.02 GBP

AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2

Delivery Cost?

RRP: £887.02 (inc. VAT)

Our Price: £887.02 (inc. VAT)

Fully Fitted: £1,101.82 (inc. VAT)

Order quantity

AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2 - view 2

AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2 - view 3

AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2 - Airtec Motorsport

Smooth flow curved end tanks, for that ultimate flow
Cold side intercooler end tank made with 70mm outlet to match the throttle body outlet
70mm 3pce alloy silicone cold side hose
Huge high flow 100mm core AKA 'The Gobstopper'
Air-Ram Scoop, forces Air directly into core of intercooler
Fitting takes 2-3 hours max, NO Bumper removal required
Increased BHP & torque
Available in Pro-Series Black
AIRTEC part number ATINTFO23

AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2

AIRTEC Stage 3 is the only off the shelf intercooler that uses a 100mm deep core!

We use this core only in the most extreme coolers, we name the 100mm core 'Gobstopper' due to it's amazing cooling properties

The AIRTEC Stage 2 had already proved itself in the Focus RS tuning scene as the must have mod for 400bhp+ cars, we wanted to take the Stage 3 to a whole new level and it took over 10 month's to get perfect.

Every Stage 3 intercooler comes with a 70mm cold side hose, if you have a big boost pipe kit fitted then your hot side pipework will still fit.

Features of Stage 3:

Smooth flow curved end tanks, for that ultimate flow
Cold side intercooler end tank made with 70mm outlet to match the throttle body outlet
70mm 3pce alloy silicone cold side hose
Huge high flow 100mm core AKA 'The Gobstopper'
Air-Ram Scoop, forces Air directly into core of intercooler
Fitting takes 2-3 hours max, NO Bumper removal required
Increased BHP & torque
Available in Pro-Series Black
Strongest intercooler available, backed up by our 3 year warranty.
Made by Europe's No.1 intercooler supplier for the Mk2 RS

Test results:

AIRTEC Stage2 Intercooler - Max power 594.2 bhp & 546.3 lb ft torque

Run 1 Air temp into Intercooler 164 degrees & Air temp out of Intercooler 25 degrees
Run 2 Air temp into Intercooler 163 degrees & Air temp out of Intercooler 27 degrees
Run 3 Air temp into Intercooler 168 degrees & Air temp out of Intercooler 28 degrees

AIRTEC Stage3 Intercooler - Max power 631.5 bhp & 600.5 lbft torque

Run 1 Air temp into Intercooler 166 degrees & Air temp out of Intercooler 21 degrees
Run 2 Air temp into Intercooler 167 degrees & Air temp out of Intercooler 22 degrees
Run 3 Air temp into Intercooler 171 degrees & Air temp out of Intercooler 22 degrees

Gains of 37+ bhp peak & 54 lb ft torque increase. This was simply by swapping from stage 2 to stage 3. Please note if you were fitting stage 3 on a 400+bhp car you would not see gains like above, this intercooler was designed for Genuine 500+bhp cars. It will still be an improvement for a car running 400+bhp however the gains seen may not be as seen above.

Approximate dimensions:

220mm height

100mm thick

940mm wide

Please note: When fitting, please be sure there is sufficient clearance against any sharp edges on the radiator. The hose must be angled a certain way to avoid this.

Registered Design Right number: 6023242

AIRTEC part no: ATINTFO23

Fits: Focus RS Mk2 2009

Supplied and fitted by Pumaspeed, the Ford tuning specialists. Call us for fitting prices and advice.

AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2

The Pumaspeed Workshop team are ready to fit the AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2 in our Head Office located here.

We estimate the labour time to be approximately 2.00 hour(s) costing £214.80 inc VAT.

Therefore making parts and labour a total cost £1,101.82 (inc. VAT).

Please don�t hesitate to contact us on the phone number above or click here to email.

Note: The fitting cost quoted is an estimate based on our Ford tuning experience. Please be aware that on rare occasions problems can occur that are out of our control; such as seized or snapped bolts due to age or wear. We work swiftly but in the event of an issue we may have to levy the fitting charge based on the time taken to rectify any unforeseen circumstances.

Pumaspeed Performance Distribution

Pumaspeed have a specialist distribution team that can dispatch the AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2 to any destination worldwide.

Please select the delivery country from the drop down list below to see the express delivery charge and set your shopping cart to the correct VAT rate.

Are you a trade customer?

Pumaspeed have a specialist trade distribution team that service many of the Motor trade specialists throughout the UK, the EU and the Rest of the World.

From a simple email tune file to a huge shipment of Milltek Sport Exhaust Systems. We have an expanding portfolio of new brands and products combined with the experience and ability to provide what you need.

To register your interest as a company click here.

No Reviews Yet
Click to write the first review

The AIRTEC Motorsport Stage 3 Intercooler Upgrade for Focus RS Mk2 product has been listed by Pumaspeed as fitting the following vehicles:

Focus RS Mk2 2009
